Semi automatic large size horizontal baler

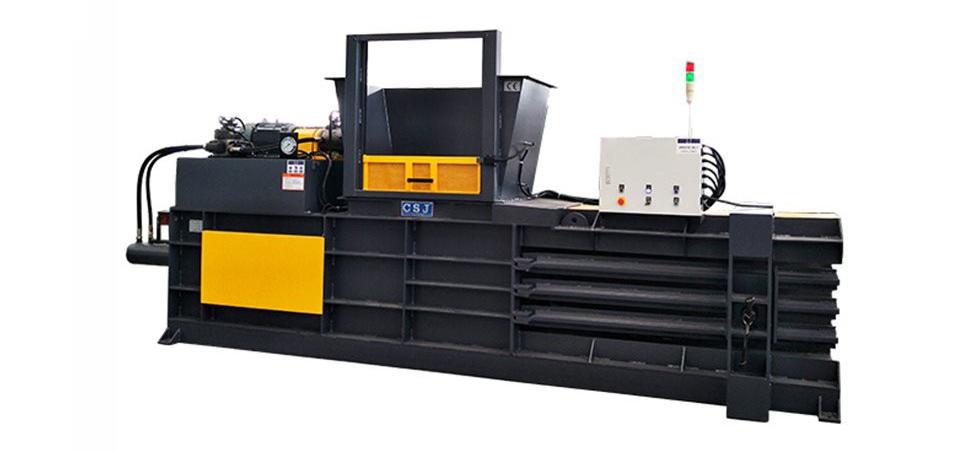

Machine Photo
It is widely used for compression and baling packaging carton printing paper mill food garbage recycling and other industries.
● Adopting the left and right shrinking method through the rod manual tightening and relaxation easy to adjust.
● Left -right compressing and pushing bale out the length of bale can be adjusted pushing out bale continuously to improve work efficiency.
● PLC program control electric button control simple operation with feeding detection and automatic compression.
● The baling length can be set and there are bundling reminders and other devices.
● The size and voltage of the bale can be customized according to the reasonable requirements of the customer. The weight of the bale is different for different packaging materials.
● Three-phase voltage safety interlock simple operation can be equipped with air pipe and conveyor feeding material with higher efficiency.
| Model | LQJPW40F | LQJPW60F | LQJPW80F | LQJPW100F |
| Compression Force | 40Ton | 60Ton | 80Ton | 100Ton |
| Bale Size (WxHxL) | 720×720x (500-1300)mm |
750x850x (500-1600)mm |
1100x800x (500-1800)mm |
1100x1100x (500-1800)mm |
| Feed Opening Size (LxW) | 1000x720mm | 1200x750mm | 1500x800mm | 1800x1100mm |
| Bale Line | 4 lines | 4lines | 4lines | 5lines |
| Bale Weight | 200-400kg | 300-500kg | 400-600kg | 700-1000kg |
| Power | 11Kw/15Hp | 15Kw/20Hp | 22Kw/30Hp | 30Kw/40Hp |
| Capacity | 1-2Ton/Hr | 2-3Ton/Hr | 4-5Ton/Hr | 5-7Ton/Hr |
| Out Bale Way | Continuously Push Bale |
Continuously Push Bale |
Continuously Push Bale |
Continuously Push Bale |
| Machine Size (LxWxH) | 4900x1750 x1950mm |
5850x1880 x2100mm |
6720x2100 x2300mm |
7750x2400 x2400mm |
