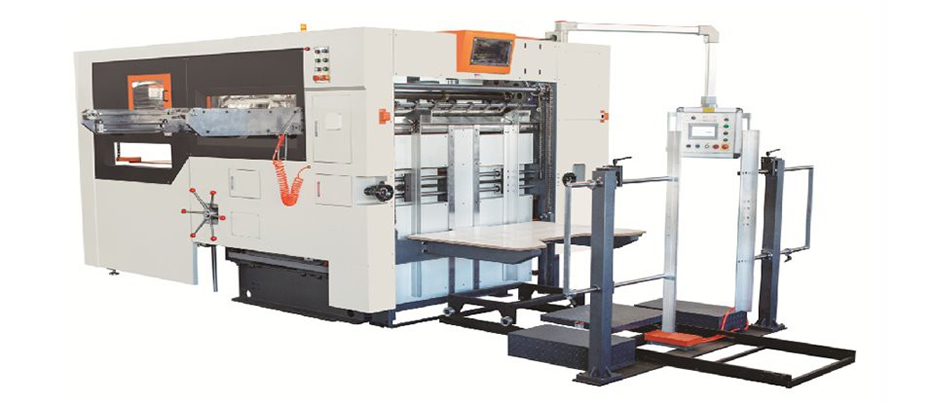

Semi automatic diecutting stripping machine

This machine is a special equipment for die-cutting of high-end color corrugated boxes, which is innovatively developed by our company, and realizes automation from paper feeding, die-cutting and paper delivery. The unique lower sucker structure can realize continuous non-stop paper feeding and effectively avoid the scratch problem of the color boxes. It adopts advanced mechanisms such as high-precision intermittent indexing mechanism, Italian pneumatic clutch, manual pressure regulation, and pneumatic chase locking device. The rigorous and precise manufacturing process guarantees accurate, efficient and stable operation of the whole machine.

Manual paper feeding makes the machine work stably, and it is suitable for a wide range of paper; the structure is simple and the failure rate is lower; the pre-piling unit  allows the paper to be stacked in advance, thus increase the efficiency.

● The machine body, bottom platform, moving platform and the upper platform are made of high-strength nodular cast iron to ensure the machine no deformation even working at a high speed. They are processed by a large five-sided CNC at one time to ensure the accuracy and durability.
● This machine adopts precise worm gear and crankshaft connecting rod mechanism to ensure the stable transmission. All of them are made of high-grade alloy materials, processed by a large machining tools, which ensure the machine with stable operation, high die-cutting pressure, and high-point pressure holding.
● The high-resolution touch screen is used for human-computer interaction. The PLC program controls the operation of the whole machine and the trouble monitoring system. The photoelectric sensor the LCD screen are used throughout the work, which is convenient for the operator to monitor and eliminate hidden dangers in time.
● The gripper bar is made of special super-hard aluminum alloy materials, with anodized surface, strong rigidity, light weight, and small inertia. It can carry out precise die-cutting and precise control even the machine running at high speed. The chains are made in German to ensure accuracy.
● Adopt high-quality pneumatic clutch, long life, low noise and stable braking. The clutch is fast, with large transmission force, more stable and durable.
● Adopts the delivery table for paper collecting, the paper pile is automatically lowered, and when the paper is full it will automatically alarms and speeds down. The automatic paper arranging device runs smoothly with simple adjustment and neat paper delivery. Equipped with an anti-return photoelectric detection switch to prevent the paper stacking table from being over height and paper rolling.
