LQ GU8320 High Speed Bottomer Machine

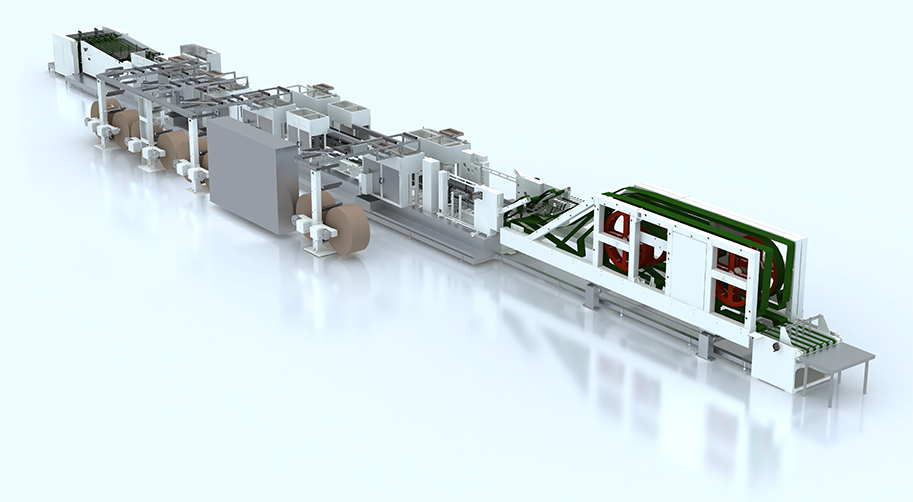

Machine Photo
| Machine Type | LQ GU8320 |
| Tube ength (mm) | 470-1100 |
| Double end glued bag length (mm) | 330-920 |
| Bag width (mm) | 330-600 |
| Bag bottom width (mm) | 90-200 |
| Bag center distance (mm) | 240-800 |
| Design maximum speed (bags/min) | 230 |
| Thickness of rubber plate (mm) | 3.94 |
| Size of the machine(High configuration)(m) | 32.63x5.1x2.52 |
| Power(High configuration) | 86KW |
| Width of valve and reinforcement paper roll(mm) | 80-420 |
| Maximum diameter of valve and reinforcement paper roll(mm) | 1000 |
● Has planetary system and vacuum system.
● Equipped with double-tube-check and congestion-check mechanism.
● Synchronous belt stopper positioning ensures consistent spacing between paper bag barrels.
● Double bag removal function; Pierce the exhaust hole at the valve port of the paper bag.
● Has Oblique indentation mechanism and cutting mechanism controlled by independent servo motors, which can be adjusted by the computer.
● The vacuum opening mechanism is used to open the paper tubes, to enable the horn to insert into the tube.
● The hom mechanism is used to open the paper tubes and make the bottoms into diamond shape.
● The flattening mechanism is used to put pressure on the diamond-shape bottom, to help form the diamond structure.
