Large format sheet fed offset printing press

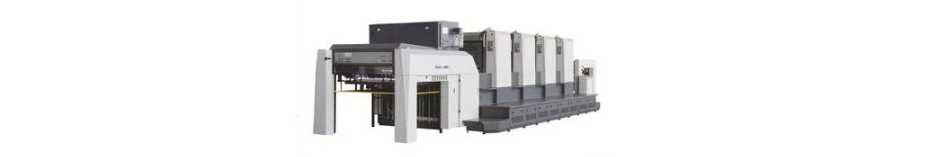

Machine Photo
Feeder
● High speed feeder.
● Paper sheets fed to the front lays with speed adjustable.
● Direct lift separation suction,linear paper sheet feeding.
● Nozzle with four suction and four.
● Blowing on both sides.
● Vacuum feeding，feeder table with aluminum alloy plate.
● Feed board with wheel brush press bar.
● Inclination of the paper sheets adjustable at the feeder head.
● Lift distance adjustable between 0.8~2mm according to sheet thickness.
● Air volume manually adjustable according to the sheet size，weight and the printing speed.
● Suction nozzle high and low steel wire shaft handle adjustment.
Sheet positioning
● Centering the pendulum conjugate cam paper feeding mechanism.
● Down-swing compound front lays，longer sheet positioning time.
● Sensor at the front lay for checking late and skewed paper sheets.
● Paper sheet size control.
● Front lay manually adjustable in vertical and longitudinal directions.
● Roller side lay with adjustable drawing force and time.
● Interlocking mechanism for the in-feeder and the front lay.
● Offer: Pressing paper plate, pressing paper bar and pressing paper wheel.
Printing unit
● Stainless coatings on the impression cylinder.
Flat sheet transfer drum smear-free sheet transfer.
● All cylinder made of anti-friction cast iron.
● Closing tooth at the high spot.
● Gripper tips and pads changeable independently.
● All cylinder born in special-purpose cylindrical roller bearings.
● Blankets with aluminum clippers for fast plate mounting.
● Blanket with tension in the middle.
| Max. Sheet Size | 1020*1420mm |
| Min. Sheet Size | 450*850mm |
| Max. Printing Size | 1010*1420mm |
| Paper Thickness | 0.1-0.6mm |
| Blanket Size | 1200*1440*1.95mm |
| Plate Size | 1079*1430*0.3mm |
| Max. Mechanical Speed | 10000s/h |
| Feeder/Delivery Pile Height | 1150mm |
| Main Motor Power | 55 kW |
| Net Weight | 57500kg |
| Overall Dimensions | 13695*4770*2750mm |
