Horizontal Scrap Cardboard Box Baling Press Machine

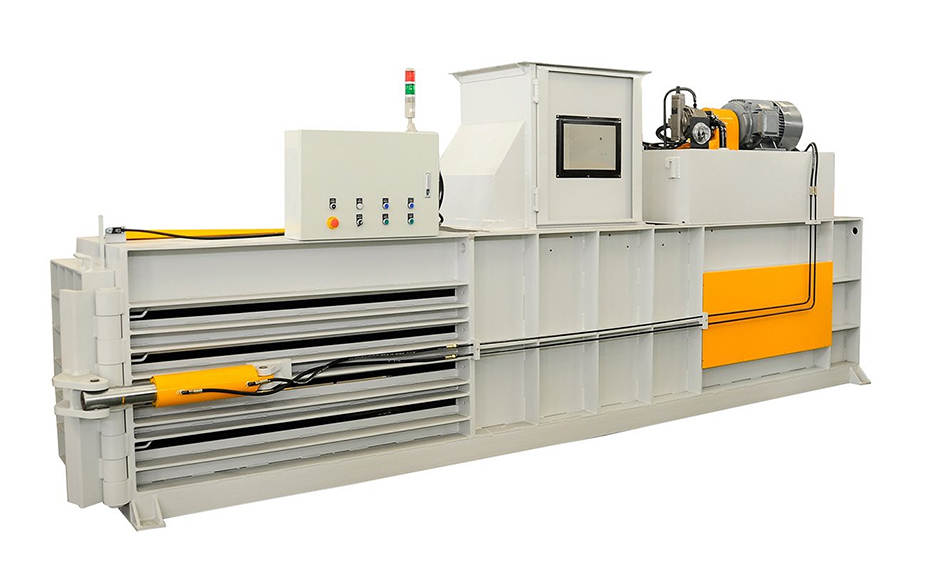

Machine Photo
It is suitable for compression and packaging of various conventional materials such as hard cardboard plastic fiber sponge cloth etc. and is widely used in various factories and recycling industries.
● The closed type left and right opening structure makes bale more compact.
● High-strength bale-out door hydraulic door locking with safe and convenient operation.
● PLC program control electric button control with feeding detection and automatic compression.
● The bale length can be set and there is a bundling reminder device.
● Each iron wire or strapping rope only needs to be inserted manually once to complete the twisting saving labor.
● The size and voltage of the bale can be customized according to the reasonable requirements of the customer and the weight of the bale is different depending on the material.
● Three-phase voltage safety interlock simple operation can be equipped with air pipe and conveyor feeding material with higher efficiency.
| Model | LQJPW40BC | LQJPW60BC | LQJPW80BC |
| Compression Force | 40ton | 60ton | 80ton |
| Bale Size (WxHxL) | 720x720x(300-1000)mm | 750x850x(300-1100)mm | 1100x800x(300-1100)mm |
| Feed Opening Size (LxW) | 1000x720mm | 1200x750mm | 1350x1100mm |
| Bale Lines | 4 lines | 4 lines | 4 lines |
| Bale Weight | 250-350kg | 350-500kg | 500-600kg |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power | 15Kw/20Hp | 18.5Kw/25Hp | 22Kw/30Hp |
| Machine Size (LxWxH) | 6500x1200x1900mm | 7200x1310x2040mm | 8100x1550x2300mm |
| Bale-Out Way | One-off bale out | One-off bale out | One-off bale out |
| Model | LQJPW100BC | LQJPW120BC | LQJPW150BC |
| Compression Force | 100ton | 120ton | 150ton |
| Bale Size (WxHxL) | 1100x1100x(300-1100)mm | 1100x1200x(300-1200)mm | 1100x1200x(300-1300)mm |
| Feed Opening Size (LxW) | 1500x1100mm | 1600x1100mm | 1800x1100mm |
| Bale Lines | 5 lines | 5lines | 5lines |
| Bale Weight | 600-800kg | 800-1000kg | 1000-1200kg |
| Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz |
| Power | 30Kw/40Hp | 37Kw/50Hp | 45Kw/61Hp |
| Machine Size (LxWxH) | 8300x1600x2400mm | 8500x1600x2400mm | 8800x1850x2550mm |
| Bale-Out Way | One-off bale out | One-off bale out | One-off bale out |
● Our Semi Automatic Baler products are competitively priced without compromising on quality.
● We have strict quality control methods and a modern testing machine to ensure all the products qualified before shipment. Thanks to our tireless efforts, today we have become the best supplier of Baler System.
● Our factory has a strong commitment to social responsibility, and our Semi Automatic Baler products meet global safety standards.
● In the market of opportunities and challenges, we rely on a wide range of solid customer base and competitive prices to provide customers with Baler System.
● We offer comprehensive training to help customers use our Semi Automatic Baler products to their full potential.
● The overall strength of the enterprise continues to grow, the scale advantage grows significantly, the business layout becomes more reasonable, the management level improves significantly, and the cultural connotation continues to accumulate.
● Our Semi Automatic Baler products are ideal for a wide range of industries, including recycling, packaging, and more.
● The company's products have created a good corporate image in the minds of many manufacturers and customers, and also established a good business cooperation relationship.
● We are a Chinese factory that specializes in high-quality Semi Automatic Baler products and professional services.
● We insist on creating the image of industry experts and shaping the brand trusted by consumers.
