High speed semi automatic stitching machine

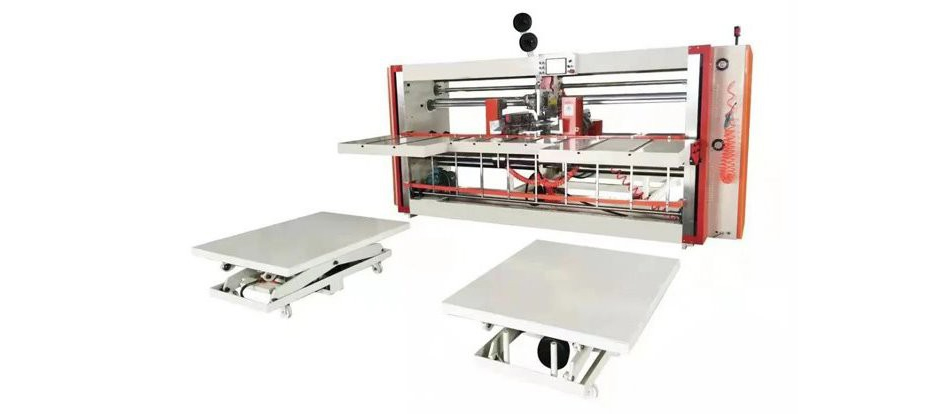

Machine Photo
● Adopt Servo Control System.
● Suitable for big size corrugate box. Fast and convieint.
● Automatic Nail distance adjusting.
● Applied single, double pieces and irregular corrugated carton stitching.
● Suitable for 3, 5 and 7 Layer carton boxes
● Running errors showed on the screen
● 4 Servo Driving. High accuracy and less fault.
● Different Stitching Mode, (/ / /), (// // //) and (// / //).
● Automatic counter ejector and counting cartons easy for banding.

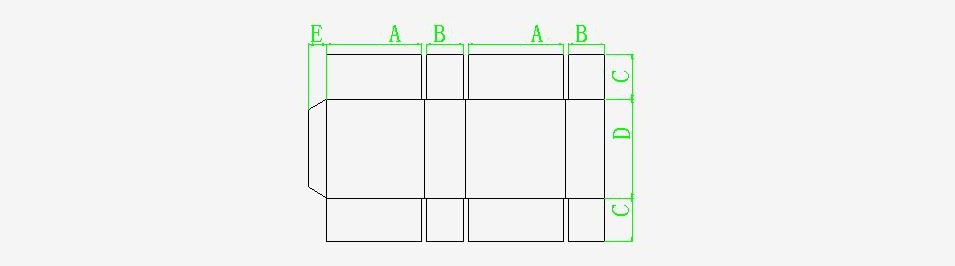

| Max. Sheet Size (A+B)×2 | 5000mm |
| Min. Sheet Size (A+B)×2 | 740mm |
| Max. Box Length (A) | 1250mm |
| Min. Box Length (A) | 200mm |
| Max. Box Width (B) | 1250mm |
| Min. Box Width (B) | 200mm |
| Max. Sheet Height (C+D+C) | 2200mm |
| Min. Sheet Height (C+D+C) | 400mm |
| Max. Cover Size (C) | 360mm |
| Max. Height (D) | 1600mm |
| Min. Height (D) | 185mm |
| TS Width | 40mm(E) |
| No. of Stitching | 2-99 Stitches |
| Machine Speed | 600 Stitches/Minute |
| Cardboard Thickness | 3 Layer, 5 Layer, 7 Layer |
| Power Required | Three Phase 380V |
| Stitching Wire | 17# |
| Machine Length | 6000mm |
| Machine Width | 4200mm |
| Net Weight | 4800kg |
