High speed flexo printing slotter die cutter machine

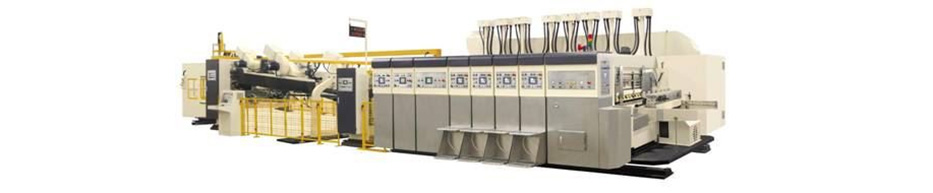

Machine Photo

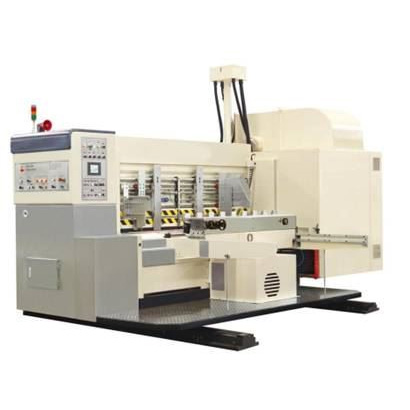

1. Feeding Unit
Machine feature
● Lead-edge feeding unit.
● 4 Shafts feed wheel.
● Linear guideway lateral moving device.
● Precious side squaring.
● Feeding stroke is adjustable.
● Skip feeding is available with counter.
● Trouble shooting with digital display.
● Volume air of feeding cam box is adjustable.
Features included
● Auto zero set.
● O.S and D.S side guide position motorized adjustment with digital display.
● Front stop gap and position adjusted manually.
● Backstop position motorized adjustment with digital cylinder.
● Side squaring fixed on THE OS guide and driven by air cylinder.
● Feed roll gap motorized adjustment with digital display.
● Quick-change feeding rubber roll.
● With hitch touch screen display on each unit and diagnostic display.
● Modem on line support.

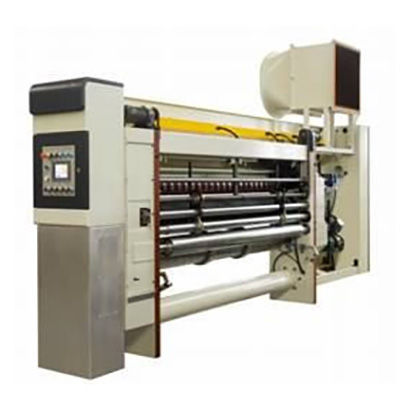

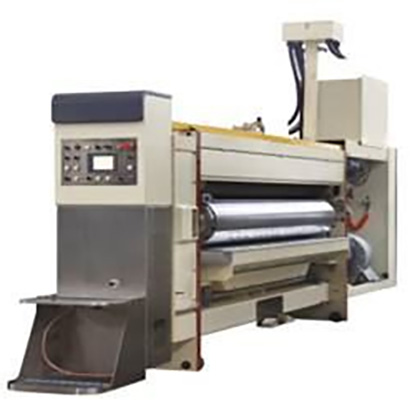

2. Printing Unit
Machine feature
● Top printing, vacuum box transfer with ceramic transfer wheel.
● Rubber roll ink system.
● Ceramic anilox roll.
● Out diameter of printing cylinder with printing plate: Φ405mm.
● PLC ink control system, ink circulate and quick washing system.
Features included
● Auto zero set.
● Anilox roll/printing cylinder gap motorized. Adjustment with digital display.
● Printing cylinder/impression roll gap motorized adjustment with digital display.
● PLC control printing register and printing horizontal move.
● Vacuum damper adjustment by pneumatic.
● Dust collector.
● Quick mounting printing plate device for saving order change time.

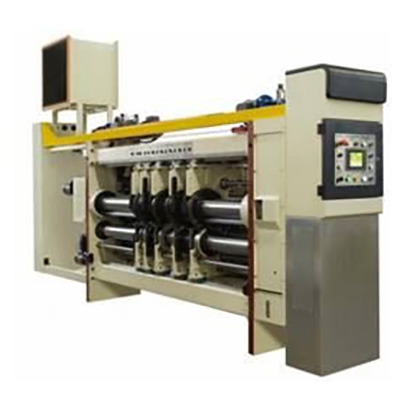

3. Slotting Unit
Machine feature
● Big pre- creaser, pre-creaser, creaser and slotter.
● Linear guideway lateral moving device with universal cross joints.
Features included
● Auto zero set.
● Single shaft double knife slotter structured.
● Creaser roll motorized adjustment with digital display.
● Slot shaft gap motorized adjustment with digital display.
● Center slot head movable, with long distance.
● Box height and slotter register motorized controled by PLC.
● Use 7.5mm thickness slotter knife.
4. Diecuting Unit
Machine feature
● Bottom die-cut for top printer.
● Out diameter of the die-cutting roll Φ360mm.
● C.U.E quick change anvil.
Features included
● Auto zero set.
● Anvil drum/ die cut drum gap motorized adjustment with digital display.
● Die-cutting cylinder gap motorized adjustment with digital display.
● Guide feed wheel gap motorized adjustment with digital display.
● Settable speed difference compensation to prolong the service of anvil cover.
● Grind the anvil cover with sand belt to prolong the service life of anvil cover.

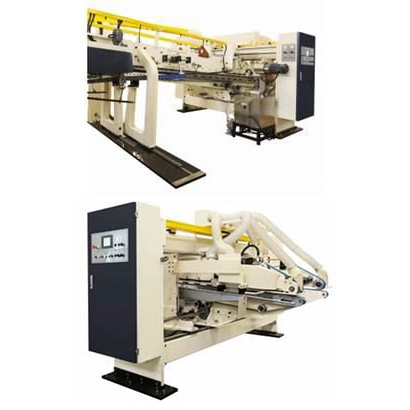

5. Folder & Gluer
Machine feature
● Top printer with down folding.
● Two belt transfer with high rigidity beam.
● Linear guideway lateral moving system.
Features included
● Auto zero set.
● Dual clean brushes to clean the corner knife scrap.
● Big gluing wheel, constant temperature glue system, liner guideway lateral moving system.
● Motorized control glue wheel position, reticulation gluing.
● Belt press wheel, motorized control gap adjustment according to board thickness.
● Folding guide wheel correct fish tail.
● Vacuum belt transfer to keep board right position.
● Lower folding belts with independent AC motor for belt speed regulating with touch screen display.
● Final squaring to correct fish tail.

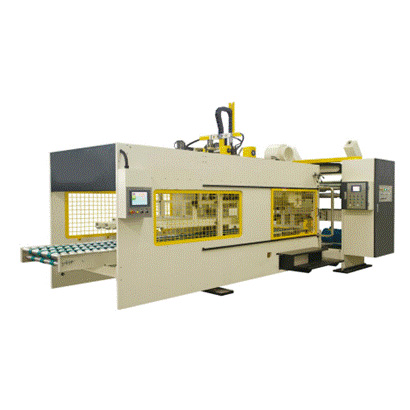

6. Count Ejector
Machine feature
● Top loading.
● Up to 25 bundles per minute.
Features included
● Servo motor driven.
● Back squiring and correction motorized control.
● Linear guideway lateral moving.
● Sheet bundle hold- down delivery belt.

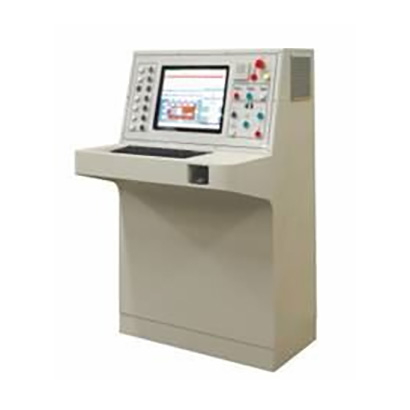

7. CNC Control System
Machine feature
● Mircosoft window base computer control system for all the gap and box dimension adjustments with order memory capacity: 99,999 orders.
Features included
● Auto zero set for feeder, printers, slotters, die-cutter unit.
● Remote service support.
● Production and order management, available to connect with the customer internal ERP.
● Dimension/ calliper/ GAP automatic setting.
● Optimized order saving.
● Article date base for repeat order settings.
● Operator, maintenance and trouble-shooting support.
| Max. Mechanical Speed | 250spm |
| Printing Cylinder Perimeter | 1272mm |
| Printing Cylinder Axial Displacement | ±5mm |
| Printing Plate Thickness | 7.2mm (Printing plate 3.94mm Cushion 3.05mm) |
| Min. Folding Size | 250x120mm |
| Min. Box Height (H) | 110mm |
| Max. Box Height (H) | 500mm |
| Max. Gluing Width | 45mm |
| Feeding Accuracy | ±1.0mm |
| Printing Accuracy | ±0.5mm |
| Slotting Accuracy | ±1.5mm |
| Die-Cutting Accuracy | ±1.0mm |
