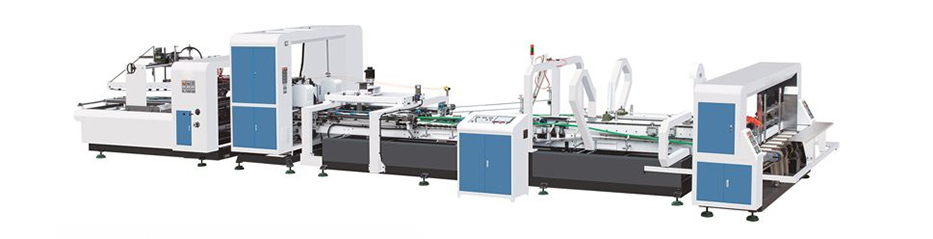

High speed automatic folder gluer

● The biggest feature of this machine is full computer control, easy operation, stable quality, speed can achieve economic benefits, greatly save manpower.
● This machine is folder gluer and stitching machine, which can paste the box, stitch the box, and also can paste the box first and then stitch one time.
● Order changing can be set within 3-5 minutes, can be mass production (with order memory function).
● Paste box and stitch box truly achieve one key conversion function.
● Suitable for three layer, five layer, single piece of board. A. B. C and AB corrugated board stitching.
● Side flapping device can make the paper feeding neat and smooth.
● Bottles covered box can also be stitched.
● Screw distance range: Min. screw distance is 20mm, max. screw distance range is 500mm.
● Max. stitching speed of the stitching head: 1050 nails/min.
● Speed with three nails as an example, the top speed is 90pcs/min.
● It can automatically complete paper folding, rectifying, stitching box, pasting box, counting and stacking output work.
● Single and double screws can be adjusted freely.

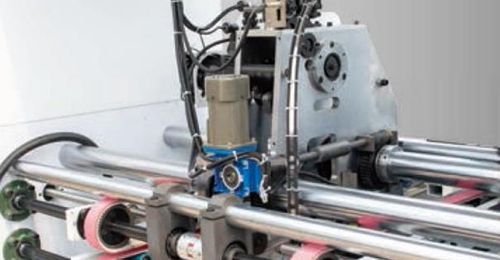

● Adopt swing type stitch head, low power consumption, faster speed, more stable, effectively improve the quality of the stitch box.
● Adopt paper correction device, solve the secondary compensation and correction box piece not in place phenomenon, eliminate scissors mouth, stitch box more perfect.
● The stitching pressure can be adjusted automatically according to the thickness of cardboard.

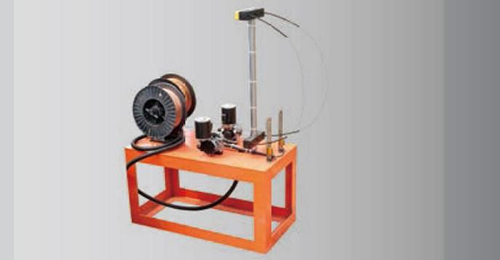

● Automatic wire feeding machine can realize the detection of stitching wire, stitching wire broken wire and stitching wire used up.
