High speed automatic flute laminator machine

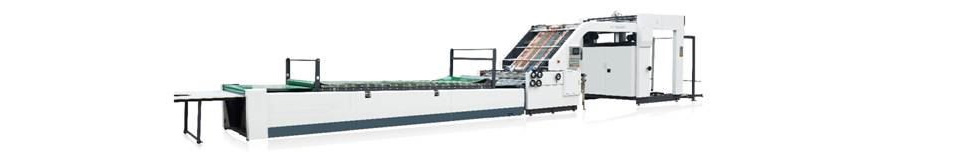

Machine Photo
● The feeding unit is equipped with a pre-piling device to increase the production efficiency. It can be also equipped with a plate for paper pile directly pushing.
● High strength feeder uses 4 lifting suckers and 5 forwarding suckers to ensure smooth running with no missing of sheet even at high speed.
● The positioning device uses several groups of sensor to sense the relative position of the running corrugated board so that the left and right servo motor used for the top paper can drive independently to align top paper with corrugated paper accurately, speedily and smoothly.
● The electric control system with touch screen and PLC program monitors automatically the working condition and facilitate trouble shooting. The electric design conforms to the CE standard.
● Gluing unit uses high precise coating roller, together with specially designed metering roller enhances the evenness of gluing. The unique gluing roller with glue stopping device and automatic glue level control system guarantees backflow with no overflow of glue.
● Machine body is processed by CNC lathe in one process, which ensures the precise of every positions.
● Toothed belts for transferring guarantees smooth running with low noise. Motors and the spares uses.
● Chinese famous brand with high efficiency, less trouble and long service life.
● Corrugated board feeding unit adopts powerful servo motor control system with the features of high sensitivity and fast speed. The suction unit uses high-pressure blower，SMC high-flow control valve as well as unique dust collection filter box, which enhances suction force for different corrugated paper, ensuring smooth running with no double or more sheets, no missing of sheets.
● When order is changed, the operator can change the order easily by only input the paper size, all the side lay adjustment can be finished automatically. The side lay adjustment also can be separately controlled with hand wheel.
● The pressure of the rollers are adjusted synchronously by one hand wheel, easy to operate with even pressure, which ensures the flute not to be damaged.
● Motion Control System: This machine adopts perfect combination of motion control system and servo system for better lamination precision.
| Model | LQCS-1450 | LQCS-16165 |
| Max. Sheet Size | 1400×1450mm | 1600×1650mm |
| Min. Sheet Size | 450×450mm | 450×450mm |
| Max. Sheet Weight | 550g/m² | 550g/m² |
| Min. Sheet Weight | 157g/m² | 157g/m² |
| Max. Sheet Thickness | 10mm | 10mm |
| Min. Sheet Thickness | 0.5mm | 0.5mm |
