Corrugated digital printing machine

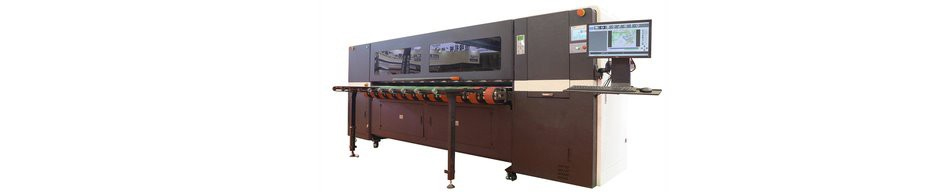

Machine Photo
● Fast production: The max, theoretical printing speed of ONE PASS high speed printer is 1 m/s, that is 3600pcs cardboard with 1 m length only needs 1 hour, this speed can compete with traditional printers.
● Without film-plate making: The traditional printer needs making plate, wasting time and cost. ONE PASS high speed printer is no need making plate, uses advanced digital inkjet printing technology, it is easy to operate and use.
● Environmental protection: The traditional printer needs to clean machine when change printing contents, resulting in a lot of sewage pollution. ONE PASS high speed printer uses four primary color inkjet printing technology without washing machine.
● Saving labors: The traditional printer has high requirements for workers' printing technology, needs many labors with tedious low production efficiency. The ONE PASS high-speed printing machine adopts computer drawing, computer color matching, computer saving, on-demand printing, save time and labor, and high production efficiency.
● 8pcs Micro piezo Epson print heads, scan-type printing width is 270mm per time, max printing speed is up to 700㎡ per hour.
● The printing area is equipped with belt type suction for paper feeding in the whole process. There are two noise absorption fans. The big size and small size of paper board all can be printed, which effectively solves the problem of slipping of paperboard.
● The main adjustment parts of feeding mechanism changed to full-automatic motor controlling, one key ready by digital setting, the time and accuracy of manual operation adjustment is improved.
● The printer is easily operated. There are three color indicator lights to observe the working state of the machine, and the overall structure of the whole machine is beautiful.
| Print Head | Micro piezo Print Head |
| Printing Width/path | 270mm |
| Media Thickness | 1mm~20mm |
| Max.Printing Speed | 700㎡/h |
| Printing resolution | ≥360×600dpi |
| Max.Size for Auto Feeding | 2500×1500mm |
| Feeding Mode | Auto Feeding |
| Working Environment | 18°~30°/50%~70% |
| Operation System | Win 7/Win 10 |
| Total Power | 6.9KW AC220V 50~60HZ |
| Printer Size | 4400×2800×1780mm |
| Printer Weights | 2500kg |
● Our Corrugated Box Digital Printing Machines are built to last and offer exceptional performance.
● We pay attention to non-economic incentives, such as performance evaluation system, self-development, work flexibility, promotion opportunities, praise and recognition, communication opportunities, etc., as well as economic incentives.
● Our Corrugated Box Digital Printing Machines are designed to meet your specific needs.
● Our company adheres to the brand concept of 'always pursuing quality' and is committed to the development, design and production of new Corrugated Digital Printing Machine.
● We pride ourselves on producing Corrugated Box Digital Printing Machines that exceed our customers' expectations.
● As a socially responsible corporate citizen, we always focus on the consumer, and through scientific and technological innovation, we achieve low energy consumption production.
● Our prices are the most competitive in the market.
● Building a well-known brand is one of the important means for enterprises to occupy and hold the market.
● Our Corrugated Box Digital Printing Machines are designed to be easy to operate and maintain.
● The development of our Corrugated Digital Printing Machine has always been guided by the core interest of our customers.
