Corrugated box inkjet printing machine

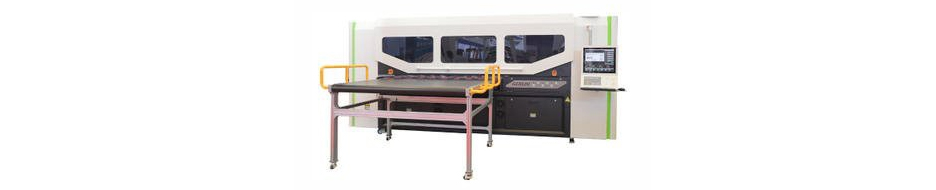

Machine Photo
● Fast production. The max theoretical printing speed of ONE PASS high speed printer is 2.7m/second, this speed can compete with traditional printers.
● Without film-plate making. Traditional printer needs making plate, wasting time and cost. ONE PASS high speed printer does not require plate-making, uses advanced digital inkjet printing technology, it is easy to operate and use
● Environmental protection. Traditional printer needs to clean machine when change printing contents, resulting in a lot of sewage pollution. ONE PASS high speed printer uses four primary color inkjet printing technology without washing machine.
● Saving manpower. Traditional printer has high requirements for workers' printing technology needs many labors with tedious adjustment process, time-consuming and labor-consuming, and low production efficiency. The ONE PASS high-speed printing machine adopts computer drawing, computer -5.-otor-matching, computer saving, on-demand printing, saving time and labor, and high production efficiency.

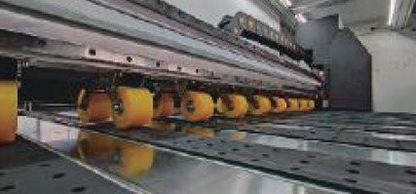

Suction material platformConduction band type, Including lighting, Accurate and stable.

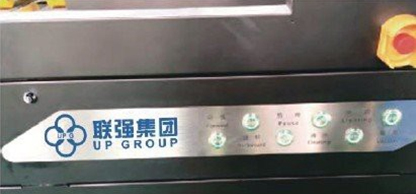

Control panel
The design is humanized and easy to operate.

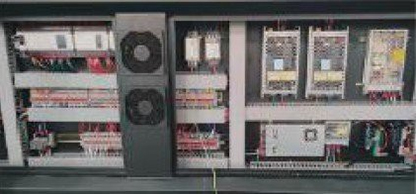

PLC electric cabinet
Stable and reliable
Risk absorption control system independent control.

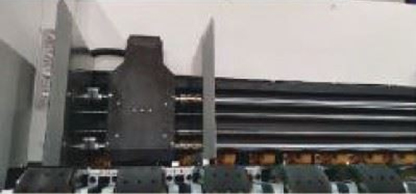

Automatic feeding system Automatic adjustment.
| Model | LQ-MD1824 |
| Rip Software Rip | Maintop |
| Picture Format | TIFF,JPG,PDF,PNG |
| Print Head | EPSON Industrial ALL-MEMS Print Head |
| No.s of Print Head | 24 |
| Ink type and color | CMYK Water Based Ink |
| Max. Printing Width | 800mm |
| Media Thickness | 0.5~20mm |
| Printing resolution | 2.7m/s(200*600DPI) |
| Max. Printing Speed | 1.8m/s(300*600DPI) |
| 0.9m/s600*600DPI) | |
| 0.6m/s(900*600DPI) | |
| Min. Feeding Width | 350×450mm without scoring |
| 350×660mm with scoring | |
| Max. Feeding Width | Standard 1800mm |
| Feeding Mode | Auto feeding |
| Working Environment | 18~30℃,humidity:50%~ 70% |
| Electric voltage | 220V土10%，50/60HZ |
| Total Power | 15KW, AC380, V50~60HZ |
| Printer size | 4310×5160×1980mm |
| Printer weight | 2500kg |
● Our Corrugated Box Digital Printing Machines are ideal for a variety of applications and industries.
● The company continuously improves the working environment and enhances the comprehensive management level; continuously creates a good working atmosphere and builds the core value system of corporate culture; continuously improves the comprehensive strength of the company and cultivates a high-quality workforce.
● Our Corrugated Box Digital Printing Machines are designed to be easy to operate and maintain.
● We sincerely hope that we can have cooperation with your esteemed company and develop our friendship. Your favorable inquires with us will be high appreciated!
● We are committed to providing our customers with the highest level of satisfaction and service.
● We have our own team of engineers and technicians who use free equipment to maintain high efficiency and flexibility in manufacturing.
● Our priority is to provide our customers with the highest-quality Corrugated Box Digital Printing Machines.
● We constantly explore and innovate, employ senior technical management personnel, and constantly improve the quality of staff.
● Our Corrugated Box Digital Printing Machines are designed to be user-friendly and efficient.
● Our expertise, professional insight and passion are key to our success. Our vision is to be recognized by our clients as the leading manufacturer in providing Corrugated Box Inkjet Printing Machine.
