Automatic Hydraulic Bale Waste Paper Machine

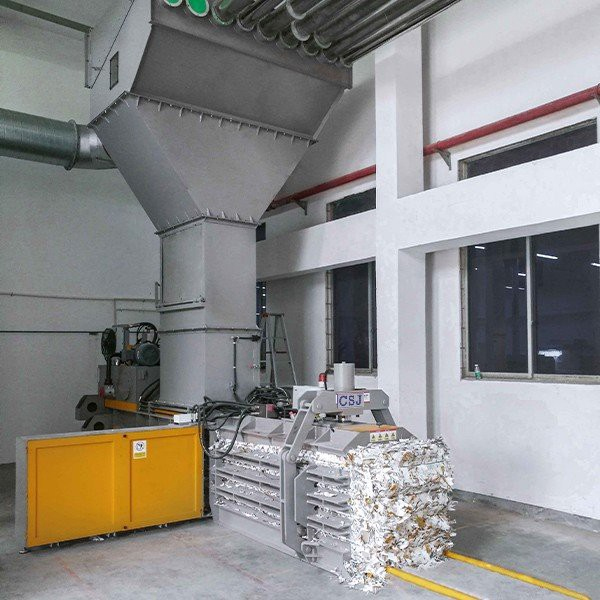

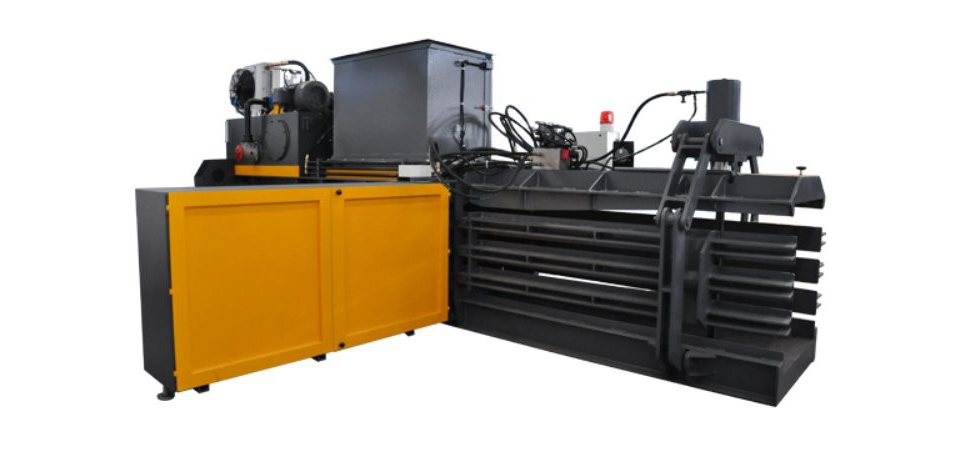

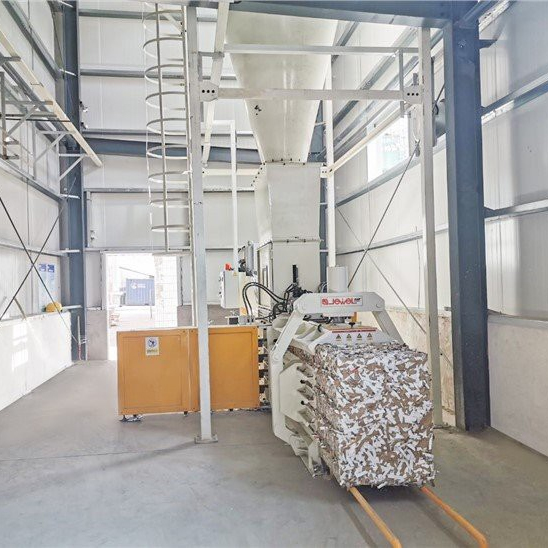

Machine Photo
Horizontal full automatic model automatic wire bundlingwidely used in packaging plants carton factories printing plants garbage sorting stations professional recycling stations and other places; suitable for waste paper cardboard plastics fabrics fibers household garbage etc. materials can be used with assembly line air pipe feeding and other methods.
● It adopts three-sided reverse-pulling shrinking type which is automatically tightened and loosened by the oil cylinder stable and powerful.
● PLC program touch screen control simple operation with feeding detection and automatic compression realizing unmanned operation.
● Unique automatic bundling device fast speed simple structure stable action low failure rate and easy to clean and maintain.
● Equipped with accelerated oil pump and booster oil pump saving electricity energy consumption and cost.
● Automatic fault diagnosis and automatic display improves detection efficiency freely sets bale length and accurately records the bale numbers.
● The unique concave multi-point cutter design improves the cutting efficiency and prolongs the service life of the cutter.
● Three-phase voltage safety interlock simple and durable it can be equipped with air pipe and conveyor feeding material with higher efficiency.
| Model | LQJPW30QT | LQJPW40QT | LQJPW60QT |
| Compression Force | 30ton | 40ton | 60ton |
| Bale Size (WxHxL) | 500x500x (300-1000) mm |
720x720x (300-1500) mm |
750x850x (300-1600) mm |
| Feed Opening Size (LxW) | 950x950mm | 1150x720mm | 1350x750mm |
| Bale Line | 3 | 4 | 4 |
| Density | 250-300kg/m³ | 350-450kg/m³ | 400-500kg/m³ |
| Capacity | 1-1.5ton/hour | 1.5-2.5ton/hour | 3-4ton/hour |
| Power | 11/15Kw/Hp | 15/20Kw/Hp | 18.5/25Kw/Hp |
| Machine Size (LxWxH) | 5000x2830x1800 | 6500x3190x2100 | 6650x3300x2200 |
| Machine Weight | 4ton | 6.5ton | 8ton |
● Our Automatic Baler products are optimized for easy maintenance and long service life.
● The fulfillment of social responsibility by enterprises has become an important path to achieve sustainable development of the global economy.
● We strive to achieve 100% customer satisfaction with our products and services.
● We give back the support and love from all walks of life with our true feelings and love, and actively participate in social public welfare undertakings.
● As a leading manufacturer of Automatic Baler equipment, we have a wealth of experience.
● We have improved the technical content of our products to make our products more intelligent, humanized and personalized.
● We take pride in delivering our Automatic Baler products on time and to our customers’ specifications.
● Today, when high efficiency, high quality and diversified life are advocated, Automatic Baler System has gradually penetrated into the hearts of every consumer and has become a pursuit of a new type of life.
● Our Automatic Baler products are highly customizable to suit individual customer requirements.
● We test every performance of our products with various environmental conditions, and strive to dedicate the fine Automatic Baler System with more reliable and stable performance to the society.
