Automatic high speed folder gluer

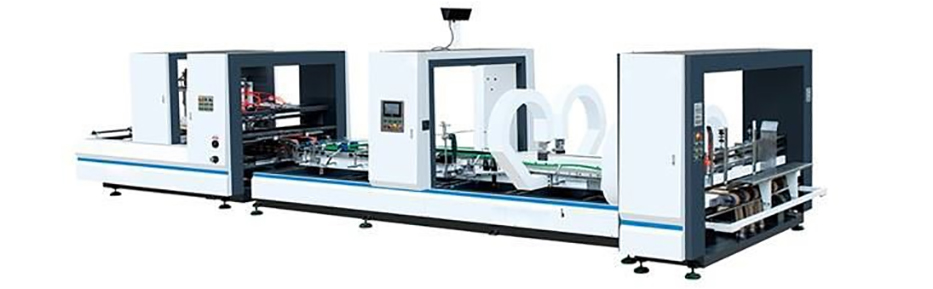

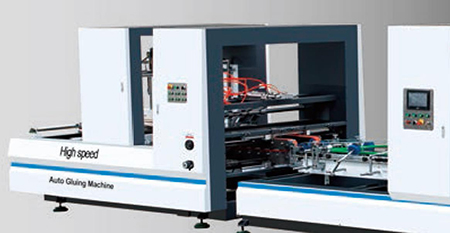

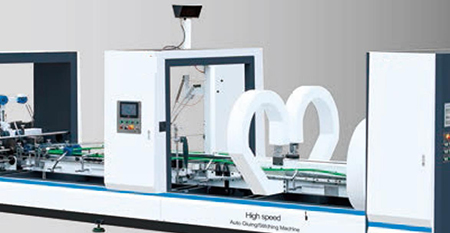

Machine Photo
The biggest feature of this machine is full computer control, easy operation, stable quality, speed can achieve economic benefits, greatly save manpower.
● Order changing can be set within 3-5 minutes, can be mass production (with order memory function).
● Suitable for three layer, five layer, single piece of board. A. B. C and AB corrugated board stitching.
● Side flapping device can make the paper feeding neat and smooth.
● It can automatically complete paper folding, rectifying, stitching box, pasting box, counting and stacking output work.
● Adopt paper correction device, solve the secondary compensation and correction.

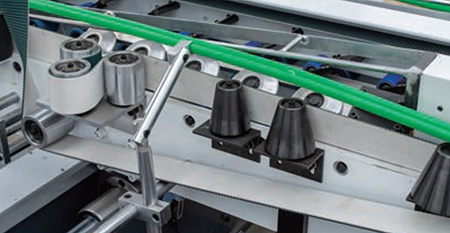

Automatic folding device
Automatic folding device adopts full computer control and automatically adjusts the folding position according to the cardboard size.
Secondary creasing unit
The second strengthen cardboard creasing line to make the folding position more accurate, the paper does not break, the creasing line is beautiful.
Digital paper delivery device
Full computer control, automatic regulation, one key adjustment.
| Model | LQHX-2600S | LQHX-2800S | LQHX-3300S |
| Total Power | 16KW | 16KW | 16KW |
| Machine Width | 3.5M | 3.8M | 4.2M |
| Machine Rated Current | 16A | 16A | 16A |
| Max. Carton Length | 650mm | 800mm | 900mm |
| Min. Carton Length | 180mm | 180mm | 180mm |
| Max. Carton Width | 600mm | 600mm | 700mm |
| Min. Carton Width | 180mm | 180mm | 180mm |
| Machine Length | 13M | 13M | 14.5M |
| Machine Weight | 8T | 9T | 10T |
| Gluing Speed | 130m/min | 130m/min | 130m/min |
● We are a trusted Chinese factory that produces high-quality Automatic Folder Gluer products to meet our clients' needs.
● We serve our country with industry and strive to make our enterprise stronger and bigger continuously to provide better quality Automatic High Speed Folder Gluer to the society.
● We are a Chinese factory with years of experience in manufacturing and supplying Automatic Folder Gluer products to clients worldwide.
● We provide Automatic High Speed Folder Gluer processing business, and we look forward to cooperating with domestic and global partners.
● As a leading Chinese factory, we are committed to producing Automatic Folder Gluer products with exceptional quality and affordability.
● Looking to the future, our pace is always firm, because we know that only by constantly advancing with the times can we lead to a more brilliant future!
● Our Chinese factory is a trusted manufacturer and supplier of Automatic Folder Gluer products, offering unmatched quality and services.
● We know that a good corporate culture is not only the spiritual link connecting employees, but also the internal source of sustainable development of enterprises.
● Our Chinese factory is dedicated to delivering Automatic Folder Gluer products and services that exceed our clients' expectations.
● Through continuous operation and adjustment, we have developed our innovation capability and formed a relatively complete technological innovation system.
