Automatic folder gluer stitcher
Machine Photo
● The biggest feature of this machine is full computer control, easy operation, stable quality, speed can achieve economic benefits, greatly save manpower.
● This machine is folder gluer and Stitching machine, which can paste the box, stitch the box, and also can paste the box first and then stitch one time.
● Order changing can be set within 3-5 minutes, can be mass production (with order memory function).
● Paste box and stitch box truly achieve one key conversion function.
● Suitable for three layer, five layer, single piece of board.A.B.C and AB corrugated board stitching.
● Side flapping device can make the paper feeding neat and smooth.
● Bottles covered box can also be stitched.
● Screw distance range: Min. screw distance is 20mm, max. screw distance range is 500mm.
● Max. stitching speed of the stitching head: 1200 nails/min.
● Speed with three nails as an example, the top speed is 150pcs/min.
● It can automatically complete paper folding, rectifying, stitching box, pasting box, counting and stacking output work.
● Single and double screws can be adjusted freely.
● Adopt swing type stitch head, low power consumption, faster speed, more stable, effectively improve the quality of the stitch box.
● Adopt paper correction device, solve the secondary compensation and correction box piece not in place phenomenon, eliminate scissors mouth, stitch box more perfect.
● The stitching pressure can be adjusted automatically according to the thickness of cardboard.
● Automatic wire feeding machine can realize the detection of stitching wire, stitching wire broken wire and stitching wire used up.

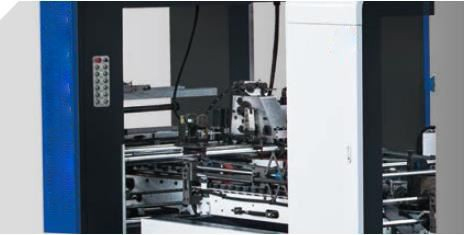

Stitching unit
Adopt synchronous belt conveying, PLC control, touch screen adjustment, convenient, fast and accurate.

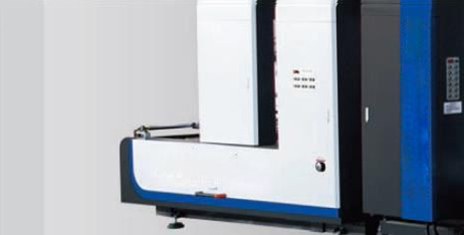

Digital feeding machine
Full computer control, automatic regulation, one key adjustment.

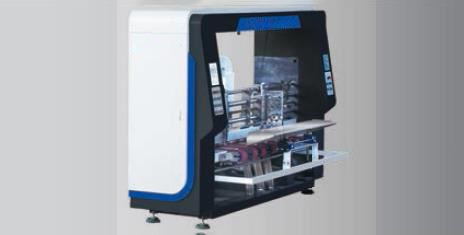

High-speed line touching device
Full computer control, automatic regulation, one key adjustment.
| Model | LQHD-2600GS | LQHD-2800GS | LQHD-3300GS |
| Total Power | 42KW | 42KW | 42KW |
| Machine Width | 3.5M | 3.8M | 4.2M |
| Stitching Head Speed (stitching/min) | 1200 | 1200 | 1200 |
| Machine Rated Current | 25A | 25A | 25A |
| Max. Carton Length | 650mm | 800mm | 900mm |
| Min. Carton Length | 220mm | 220mm | 220mm |
| Max. Carton Width | 600mm | 600mm | 700mm |
| Min. Carton Width | 130mm | 130mm | 130mm |
| Machine Length | 16.5M | 16.5M | 18.5M |
| Machine Weight | 12T | 13T | 15T |
| Stitch Distance | 20-500mm | 20-500mm | 20-500mm |
| Gluing Speed | 130m/min | 130m/min | 130m/min |
