Automatic folder gluer stitcher machine

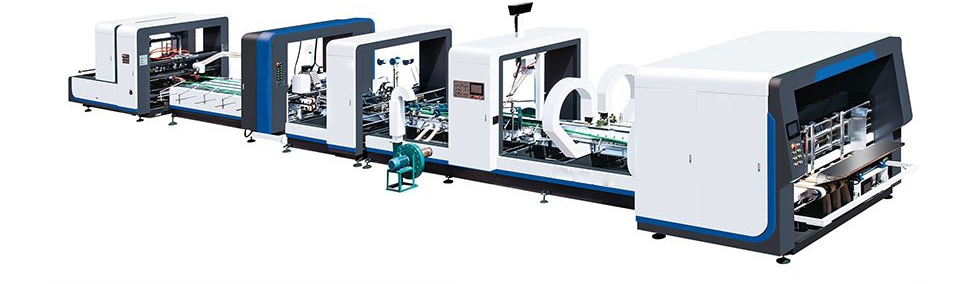

Machine Photo
● The biggest feature of this machine is full computer control, easy operation, stable quality, speed can achieve economic benefits, greatly save manpower.
● This machine is folder gluer and stitching machine, which can paste the box, stitching the box, and also can paste the box first and then Stitching one time.
● Order changing can be set within 3-5 minutes,can be mass production (with order memory function).
● Paste box and stitching box truly achieve one key conversion function.
● Suitable for three layer, five layer, single piece of board.A.B.C and AB corrugated board stitching.
● With automatic line touching function, better molding effect.
● Screw distance range: Min. screw distance is 20mm, max. screw distance range is 500mm.
● Max. stitching speed of the stitching head: 1200 nails/min.
● Speed with three nails as an example, the top speed is 150pcs/min.
● It can automatically complete paper folding, rectifying, stitching box, pasting box, counting and stacking output work.
● Single and double screws can be adjusted freely.
● Adopt swing type stitching head, low power consumption, faster speed, more stable, effectively improve the quality of the Stitching box.
● Adopt paper correction device,solve the secondary compensation and correction box piece not in place phenomenon,eliminate scissors mouth, stitching box more perfect.
● The stitching pressure can be adjusted automatically according to the thickness of cardboard.
● Automatic wire feeding machine can realize the detection of stitching wire, stitching wire broken wire and stitching wire used up.

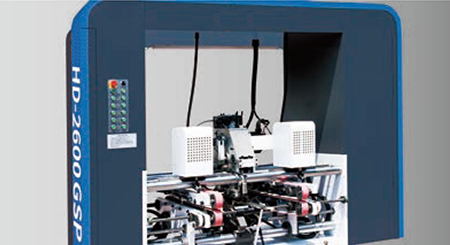

Stitching unit
Adopt synchronous belt conveying, PLC control, touch screen adjustment, convenient, fast and accurate.

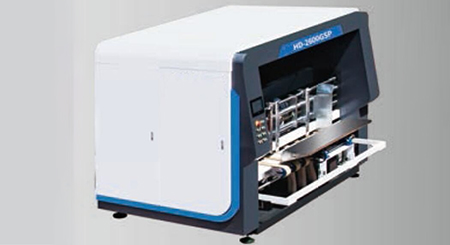

Digital feeder
Full computer control, automatic regulation, one key adjustment.

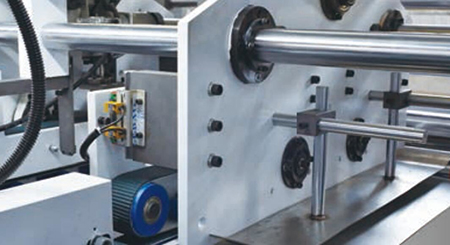

High-speed line touching device
Full computer control, to achieve continuous touch line function.
| Model | LQHD-2600GSP | LQHD-2800GSP | LQHD-3300GSP |
| Total Power | 50KW | 50KW | 50KW |
| Machine Width | 3.5M | 3.8M | 4.2M |
| Stitching Head Speed (Stitching/Min) | 1200 | 1200 | 1200 |
| Machine Rated Current | 30A | 30A | 30A |
| Max. Carton Length | 650mm | 800mm | 900mm |
| Min. Carton Length | 220mm | 220mm | 220mm |
| Max. Carton Width | 600mm | 600mm | 700mm |
| Min. Carton Width | 130mm | 130mm | 130mm |
| Machine Length | 17.5M | 17.5M | 20M |
| Machine Weight | 13T | 15T | 18T |
| Stitch Distance | 20-500mm | 20-500mm | 20-500mm |
| Gluing Speed | 130m/min | 130m/min | 130m/min |
● Our Automatic Folder Gluer and Stitching Machine products are designed to meet or exceed industry standards for quality and performance.
● Our company adopts the management philosophy of 'dare to be the first, strive for the upper reaches, reject excuses, and act immediately'.
● Our Automatic Folder Gluer and Stitching Machine products are of superior quality and offered at competitive prices.
● Our company has many years of production and sales experience and we can well understand and cooperate with customers' needs and make response.
● We offer comprehensive warranties on all our Automatic Folder Gluer and Stitching Machine products to ensure our clients' peace of mind.
● The company has established long-term cooperative relations with many enterprises with strong strength, reasonable prices and excellent services.
● Our Chinese factory is equipped with the latest technology and machinery to ensure the accuracy and consistency of our Automatic Folder Gluer and Stitching Machine products.
● With strong technical strength, supply and marketing capabilities, our products are widely used in Automatic Folder Gluer Stitcher Machine.
● Our Chinese factory is equipped with state-of-the-art technology and advanced machinery to ensure the accuracy and efficiency of our Automatic Folder Gluer and Stitching Machine products.
● We operate in compliance with the law, serve customers with excellent and rapid response, and provide customers with high-quality product solutions.
